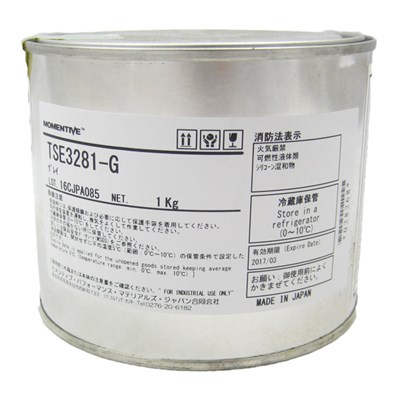

TSE3281-G silicone adhesive is a one component, medium viscosity, thermally conductive material, which cures to an elastomer when heat is applied. It is non-corrosive and has excellent adhesion properties to a wide variety of substrates without the need for using a primer.
FEATURES:
| Property | Unit | Value |
| Appearance | Grey | |
| Specific Gravity (23 °C) | 2.7 | |
| Hardness (Type A) | 84 | |
| Viscosity (23°C) | Pa•s | 60 |
| Tensile Strength | MPa | 4.5 |
| Elongation | % | 50 |
| Adhesion Strength | MPa | 2.5 |
| Dielectric Strength | kV/mm | 15 |
| Dielectric Constant (60Hz) | 5.2 | |
| Dissipation Factor (60 Hz) | 0.002 | |
| Volume Resistivity | Ω·cm | 4.8×10^14 |
| Thermal Conductivity | W/m·K | 1.68 |
| Linear Expansion | 1/K | 1.4 x 10^(-4) |
